YK Series low cost Sway Granulator wet granulator machine for banlangen granules
Adjustable Tension Wet Granulator Machine / Banlangen Granules Sway Granulator YK Series
Description
These series machine are used for forming the required granules from moist power material, or for crushing dried block stock into granules in required size. It main features are: the rotation speed of the rotor can be adjusted during operation and the sieve can be removed and remounted easily; its tension also adjustable. The driving mechanism is totally enclosed in the machine body and its lubrication system improves the lifetime of the mechanical components. Type YK160, the speed of its rotor can be adjusted during operation, its surface is painted for universal usage. All the types of design is entirely GMP compliant, its surface is made of high quality stainless steel and looks nice. Especially the metal and stainless steel screen mesh improves the pellets quality.
Advantages
1). Material,usually all material use stainless steel 304,if you want stainless steel 316,we can make for you.
2). Automatic operating :just press button
Easy to clean,usually use water cooling and air compressor is ok .
3). Final powder size range from 0.8-5mm
Technical Parameters
| Model | YK-100 | YK-160 | YK-200 | YK-320 |
| Capacity(kg/h) | 20-60 | 100-200 | 150-400 | 200-600 |
| Power(kw) | 1.1 | 3 | 5.5 | 7.5 |
| Roller speed(r/min) | 65 | 65 | 65 | 65 |
| Dia. Of roller(mm) | Φ100 | Φ160 | Φ200 | Φ320 |
| Weight(kg) | 120 | 350 | 550 | 800 |
| Overall size(mm) | 700×450×900 | 900×750×1150 | 1100×800×1250 | 1400×900×1450 |
Product Tags:
|
|

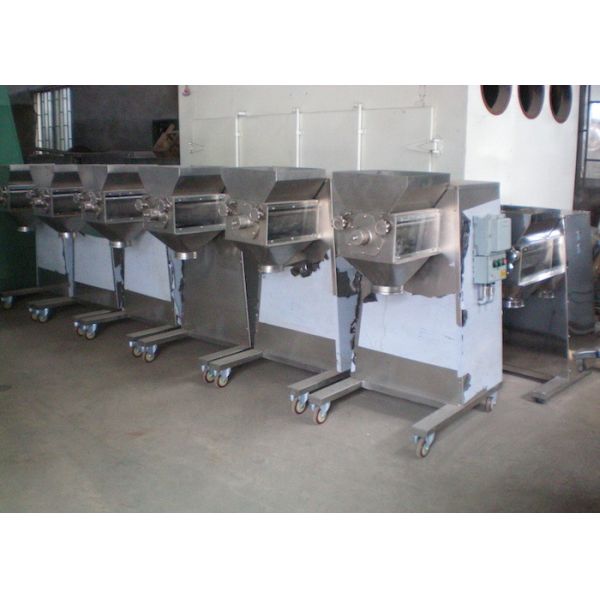

Adjustable Tension 65 R / Min Wet Granulator Machine Images
|
